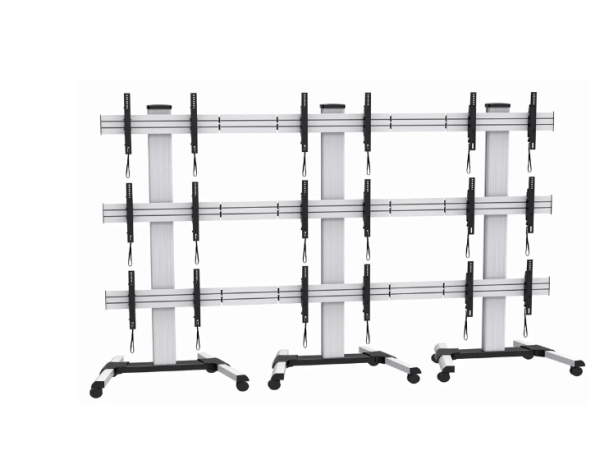

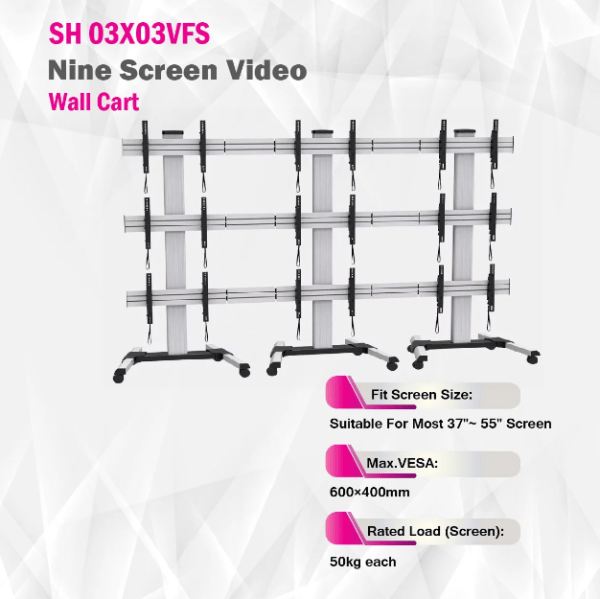

SH 03X03VFS – Nine Screen Video Wall Cart – SKILLTECH

Description

The SH 03X03VFS is a standard nine-screen video wall cart designed for impactful multi-screen displays in various settings. Constructed from a sturdy combination of steel, aluminum, and plastic, this cart ensures robustness and stability. Its powder-coated and oxidized surface finish not only enhances its visual appeal but also provides long-lasting protection against wear and tear.With a total height of 1630mm and dimensions measuring 835x700x1630mm, this cart is tailored to accommodate most 37″ to 55″ screens. It supports multiple VESA patterns, including 200×200, 400×200, 300×300, 400×400, and 600x400mm, ensuring compatibility with a wide range of screens.The SH 03X03VFS can support up to nine screens, arranged in a 2×3 configuration, with each screen having a maximum load capacity of 50kg. This configuration ensures secure placement and stability for all screens. The cart offers a tilt range of +15° to -15°, allowing you to achieve optimal viewing angles for your displays.

Product Category: TV Cart & Stand
Rank: Standard
Material: Steel+Aluminum+Plastic
Surface Finish: Powder Coating,Oxidized
Column Size: Total Height:1630mm (Total Height:64.2″)
Dimension: 835x700x1630mm (32.9″x27.6″x64.2″)
Fit Screen Size: Suitable For Most 37″ ~ 55″ Screen
VESA Compatible: 200×200, 400×200,300×300,400×400, 600×400mm
Max.VESA: 600×400mm
Rated Load (Screen): 50kg each
Screen Qty: 2×3
Tilt Range: +15° ~ -15°
Swivel Range: No
Screen Rotation: +3° ~ -3°
Adjustable TV Height: yes
Cable Management: yes
Wheel: yes
Instruction Manual Included: Yes
