LH75WMBWLGCXUE – 75″ Flip Pro WM75B Interactive Display – SAMSUNG

Description

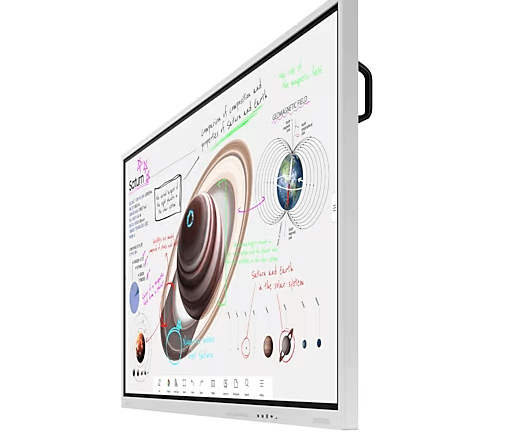

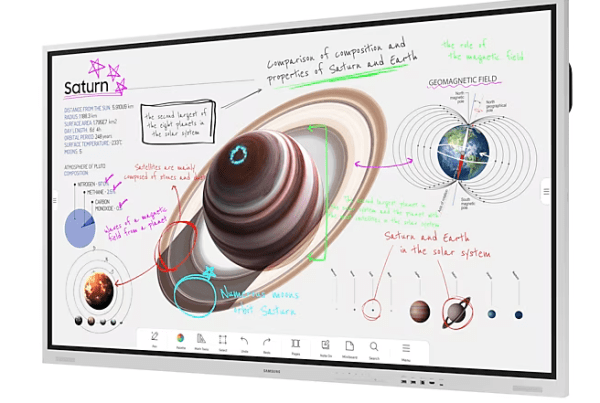

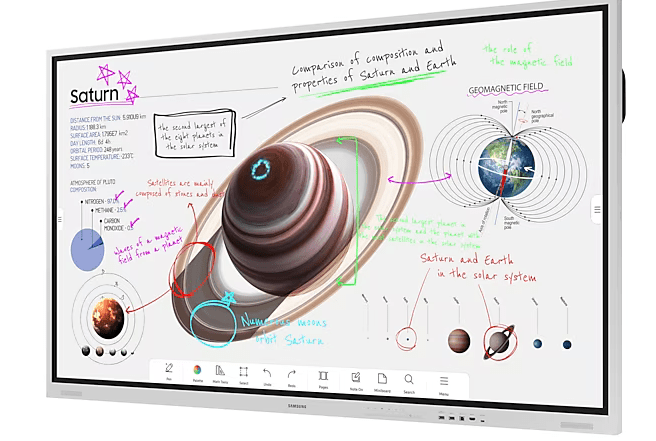

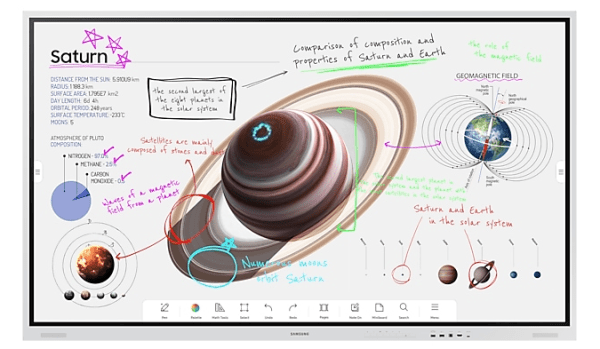

Flip Pro WM75B Interactive Display

LH75WMBWLGCXUE

• Unlimited learning possibilities.
• Better interaction with best-in-class multi-touch
• Bring ideas to life in an instant

Display

• Diagonal Size 75″
• Panel Type VA
• Resolution 3,840 x 2,160
• Pixel Pitch (HxV, mm) 2451×0.2451
• Brightness (Typ) 350 (w/o glass), 220 (w/glass)
• Contrast Ratio 4000:1(without glass)
• Viewing Angle (H/V) 178/178
• Response Time 8ms
• Color Gamut 72%
• Glass Haze 2%(without glass)
• H-Scanning Frequency 30~81kHz
• Maximum Pixel Frequency 594Mhz
• V-Scanning Frequency 48~75Hz
• Operation Time Support 16/7

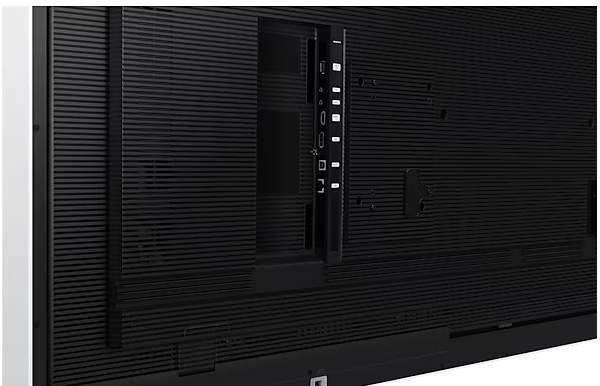

Connectivity

• HDMI In 2
• DP In 1
• Version of HDMI 0
• Version of DP 2
• Version of HDCP 2
• USB 4 (A type : Front 2, Rear 1, C Type : Front 1)
• Audio Out Stereo Mini Jack
• RS232 In Yes
• RJ45 In Yes
• WiFi Yes
• Bluetooth Yes

Power

• Power Supply AC100-240V 50/60Hz
• Power Consumption (On Mode, W) 473W(100-240V), 451W(220-240V), OPS(16V/4.5A)
• Power Consumption (Sleep Mode, W) ‎0.5‎

Dimension

• Set Dimension (WxHxD, mm) ‎1724 x 1026.3 x 89‎
• Package Dimension (WxHxD, mm) ‎1905 x 1189 x 287‎

Weight

• Set Weight (kg) ‎59.3‎
• Package Weight ‎72.2‎

Operation Conditions

• Temperature 0℃~40℃
• Humidity 10 ~ 80%, non-condensing

Mechanical Specification

• VESA Mount (mm) ‎400 x 400‎
• Bezel Width (mm) ‎20.4(T/LR), 44.7(B)‎
• Frame Material Metal(Aluminum)

Optional Feature

• Touch Yes
• Mount Yes(Model Name : WMN6575SF)

SoC

• OS Version Tizen 6.5
• Flash Memory Size 32GB

Eco

• Energy Efficiency Class A

Touch

• Touch Technology IR
