Description

75″ Crystal UHD Signage QMC

LH75QMCEBGCXUE

• Ultra Slim Depth
• Even Bezel
• Centered VESA Holes

Display

• Diagonal Size 75″
• Panel Type VA
• Resolution 3,840 x 2,160
• Pixel Pitch (HxV, mm) 429×0.429mm
• Brightness (Typ) 500 nit
• Contrast Ratio 4,000:1
• Viewing Angle (H/V) 178/178
• Response Time 8ms
• Color Gamut 72% (NTSC)
• Glass Haze 25 %
• H-Scanning Frequency 30~81kHz
• Maximum Pixel Frequency 594MHz
• V-Scanning Frequency 48~75Hz
• Contrast Ratio (Dynamic) Mega
• Operation Time Support 24/7

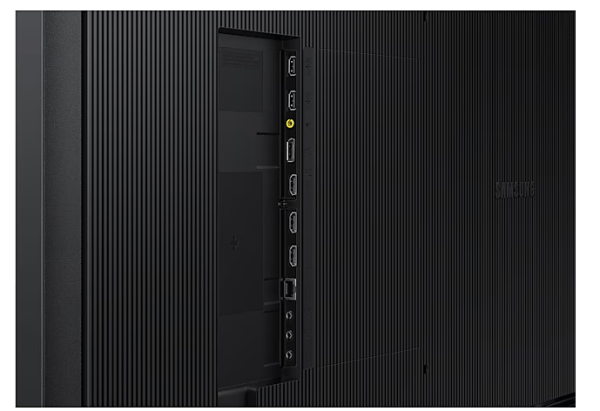

Connectivity

• HDMI In 3
• DP In 1
• Version of HDMI 2
• Version of DP 2
• Version of HDCP 2
• USB 2
• IR In Yes
• Audio In No
• Audio Out Stereo Mini Jack
• RS232 In Yes
• RS232 Out Yes
• RJ45 In Yes
• WiFi Yes
• Bluetooth Yes

Power

• Power Supply AC100-240V 50/60Hz
• Power Consumption (On Mode, W) 5
• Power Consumption (Sleep Mode, W) 5

Dimension

• Set Dimension (WxHxD, mm) 3 x 960.4 x 28.5
• Package Dimension (WxHxD, mm) 1839 x 1113 x 180

Weight

• Set Weight (kg) 4
• Package Weight 5 kg

Operation Conditions

• Temperature 0℃~ 40 ℃
• Humidity 10 ~ 80%, non-condensing

Mechanical Specification

• VESA Mount (mm) 400 x 400
• Bezel Width (mm) 4mm (even)
• Frame Material Non-Glossy

Optional Feature

• Mount WMN-B50SC
• Stand STN-L6585C

SoC

• OS Version Tizen 7.0
• Flash Memory Size 16GB

Eco

• Energy Efficiency Class A+

Certification and Compliance

• EMC Class B
• Safety 60950-1, 62368-1
