Description

LH65QBCEBGCXUE – QBC Series 65″

• Series Name

• Series Name QB Series

• Display

• Screen Size 65″
• Panel Technology VA
• Resolution 3,840×2,160
• Contrast Ratio (Typical) 4,000:1
• Viewing Angle (H/V) 178/178
• Response Time 8ms
• Operation Hours 16/7
• Pixel Pitch (HxV) 0.372×0.372 (mm)
• Color Gamut 92% (DCI-P3, CIE 1976)%
• Glass Haze 2%
• H-Scanning Frequency 30~81kHz
• Maximum Pixel Frequency 594MHz
• V-Scanning Frequency 48~75Hz
• Contrast Ratio (Dynamic) Mega
• Brightness (Typ.) 350 nit

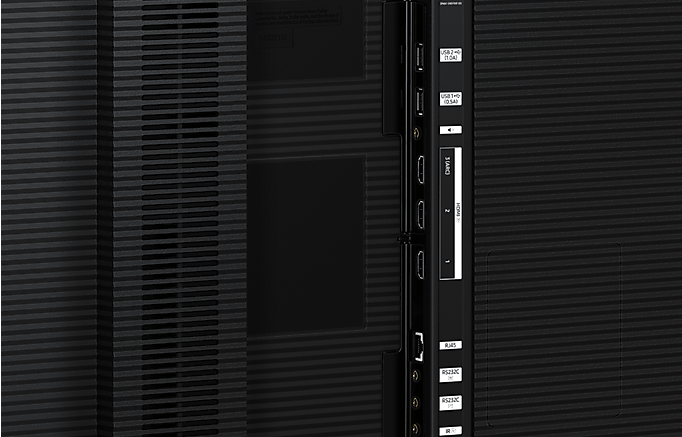

• Connectivity

• HDMI In 3
• USB 2
• Version of HDCP 2.2
• IR In Yes
• Audio Out Stereo Mini Jack
• RS232 In Yes
• RS232 Out Yes
• RJ45 In Yes
• WiFi Yes
• Version of HDMI 2

• Power

• Power Supply AC100-240V 50/60Hz
• Power Consumption (Typical/Max) 182 W
• Power Consumption (Standby) 0.5 W

• Environmental Conditions

• Operating Temperature 0℃~ 40℃
• Operating Humidity 10~80%, non-condensing %

• Features

• Bluetooth Yes
• System On Chip Yes

• Dimensions

• Packaging (W x H x D)
• 1611x973x185 mm
• Bezel Width 9.2mm(U/L/R), 11.2mm(B)
• Set Dimension (WxHxD) 1453.9x831x46.3 mm

• Weight

• Product Weight 24.9 kg
• Package Weight 33.3 kg

• SoC

• OS Version Tizen 6.5
• Flash Memory Size 8GB

• Certification and Compliance

• EMC Class B
• Safety 60950-1, 62368-1
