Description

LH55VMBUBGBXUE Ultra Narrow Bezel Video Wall

LH55VMBUBGBXUE

• Wide viewing angle
• Ultra narrow bezel
• Non-glare panel

Display

• Diagonal Size 55″
• Panel Type IPS
• Resolution 1,920 x 1,080
• Pixel Pitch (HxV) 63 x 0.63
• Brightness (Typ) MAX 500 nit
• Contrast Ratio 1,200:1
• Viewing Angle (H/V) 178/178
• Response Time 8ms
• Color Gamut 72 %
• Glass Haze 25 %
• H-Scanning Frequency 7~72.3kHz
• Maximum Pixel Frequency 82MHz
• V-Scanning Frequency 57~63Hz
• Contrast Ratio (Dynamic) 45,000:1
• Operation Time Support 24/7

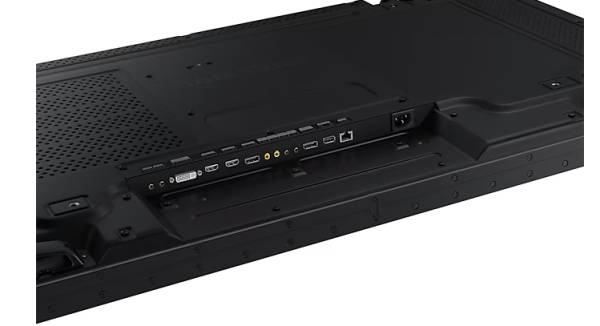

Connectivity

• HDMI In 2
• DP In 1
• DVI In Yes
• Version of HDMI 2
• Version of DP 2
• Version of HDCP 2
• USB 1
• IR In Yes
• Audio In Yes
• Audio Out Stereo Mini Jack
• Video Out Yes
• Power Out No
• RS232 In Yes
• RS232 Out Stereo Mini Jack
• RJ45 In Yes

Power

• Power Supply AC100-240V 50/60Hz
• Power Consumption (On Mode) 220 W
• Power Consumption (Sleep Mode) 5 W

Dimension

• Set Dimension (WxHxD) 5 x 684.3 x 73.1 mm
• Package Dimension (WxHxD) 1398 x 844 x 257 mm

Weight

• Set Weight 2 kg
• Package Weight 8 kg

Operation Conditions

• Temperature 0℃~ 40℃
• Humidity 10 ~ 90%

Mechanical Specification

• VESA Mount 600 x 400 mm
• Bezel Width 25mm(U/L), 1.25mm(R/B)
• Frame Material Glossy

Optional Feature

• Mount Yes
• Stand No

Eco

• Energy Efficiency Class G
