LH55VHRRBGBXUE – 55″ VHR-R Razor Narrow Bezel Video Wall – SAMSUNG

Description

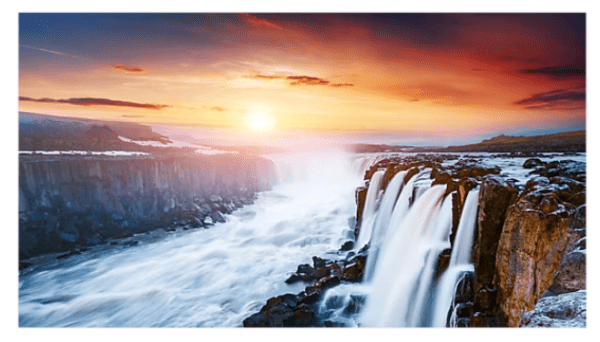

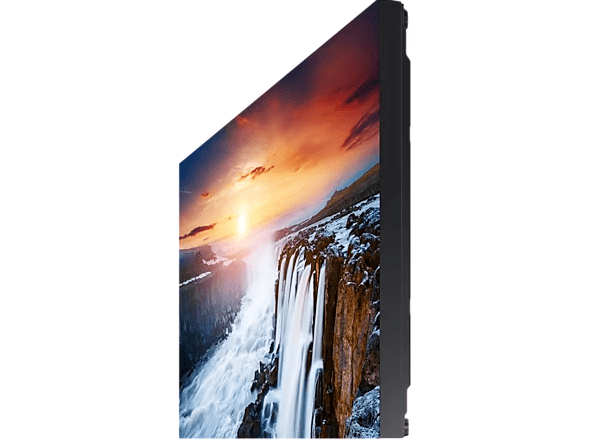

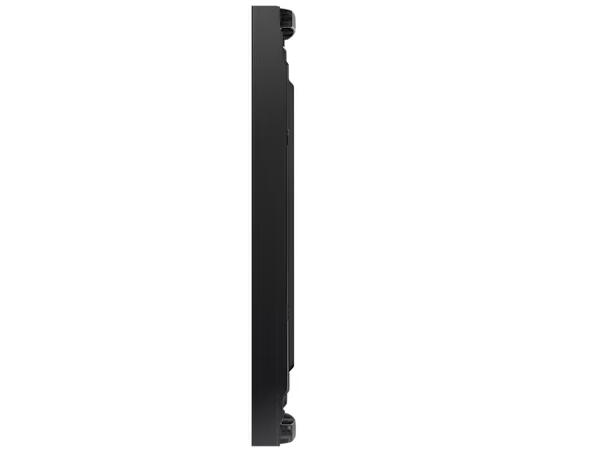

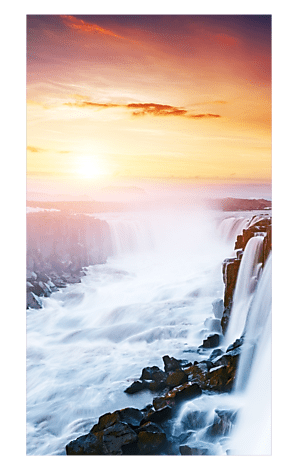

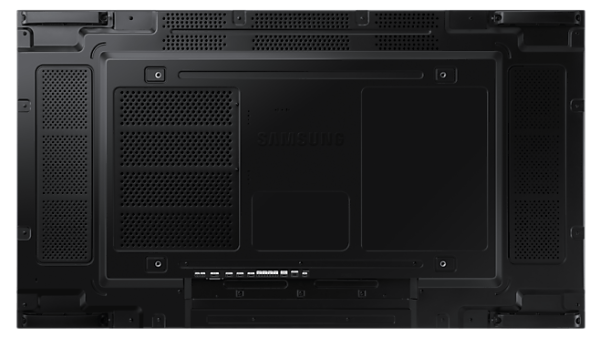

55″ VHR-R Razor Narrow Bezel Video Wall

LH55VHRRBGBXUE

Display

• Diagonal Size 55″
• Panel Type Direct LED
• Resolution 1,920 x 1,080
• Pixel Pitch (HxV, mm) 63 x 0.63
• Brightness (Typical, cd/m2) Max 700
• Contrast Ratio 1,100 : 1
• Viewing Angle (H/V) 178 / 178
• Response Time 8 ms
• Color Gamut 72 %
• Glass Haze 28 %
• H-Scanning Frequency 3 kHz ~ 70 kHz
• Maximum Pixel Frequency 78 MHz
• V-Scanning Frequency 47 Hz ~ 63 Hz
• Contrast Ratio (Dynamic) 30,000 : 1

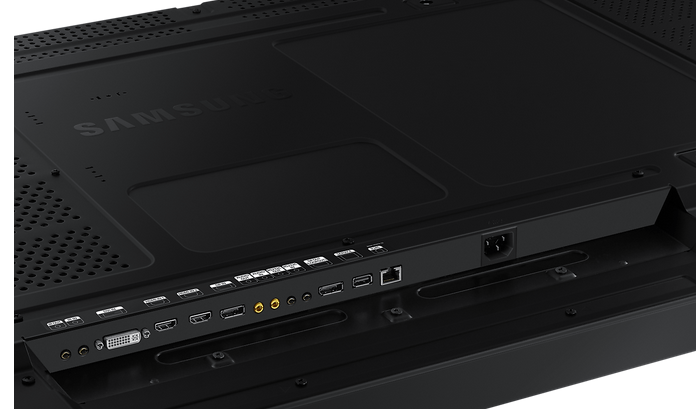

Connectivity

• HDMI In 2
• DP In 1
• DVI In 1
• Tuner In No
• USB 1
• Component In No
• Composite In No
• IR In Yes
• HDBaseT In No
• Audio In Yes
• Audio Out Stereo Mini Jack
• Video Out Yes
• Power Out No
• RS232 In Yes
• RS232 Out Stereo Mini Jack
• RJ45 In Yes
• RJ45 Out No

Power

• Power Supply AC 100 to 240 VAC (60 / 50 Hz)
• Power Consumption (On Mode, W) 270
• Power Consumption (Sleep Mode, W) 5

Dimension

• Set Dimension (WxHxD, mm) 0 x 681.7 x 69.9
• Package Dimension (WxHxD, mm) 0 x 844.0 x 257.0

Weight

• Set Weight (kg) 8
• Package Weight 1

Operation Conditions

• Temperature 0 ℃ ~ 40 ℃
• Humidity 10 ~ 90 %

Mechanical Specification

• VESA Mount (mm) 600 x 400
• Bezel Width (mm) 44
• Frame Material Glossy

General Feature

• External Memory Slot No

Optional Feature

• Mount Yes
• Stand No

Internal Player (MagicInfo)

• MagicInfo Daisychain Videowall Support Yes

Certification and Compliance

• EMC Class B
• Safety 60950-1
